Digital pressure gauge 0-60MPa
Digital pressure gauge 0-60MPa

Digital pressure gauge 0-60MPa

Product Tags :

Product Description

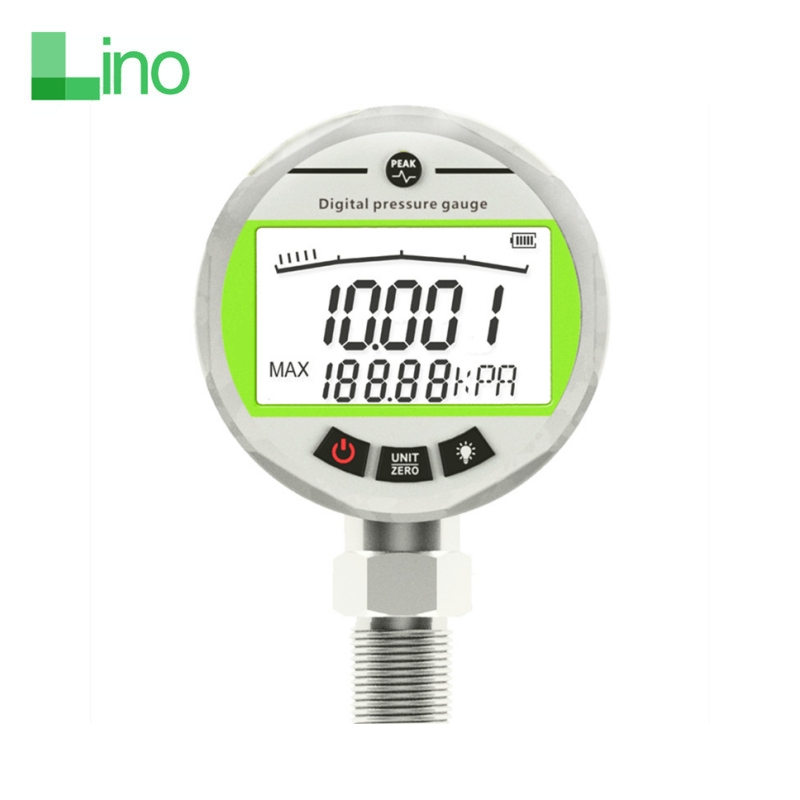

Description of digital pressure gauge
LNG-80 digital pressure gauge has a built-in high-precision pressure sensor. It is a high-precision pressure gauge integrating pressure measurement and display. It has the characteristics of anti-vibration, high display accuracy, high stability, zero reset, and automatic standby. This series of digital pressure gauges are powered by batteries. Due to the use of low-power processor chips, the battery life is long, and they have automatic standby and one-key reset functions. They are easy to use and can replace mechanical pressure gauges for portable pressure measurement. Equipment matching , Standard pressure calibration equipment and other fields.

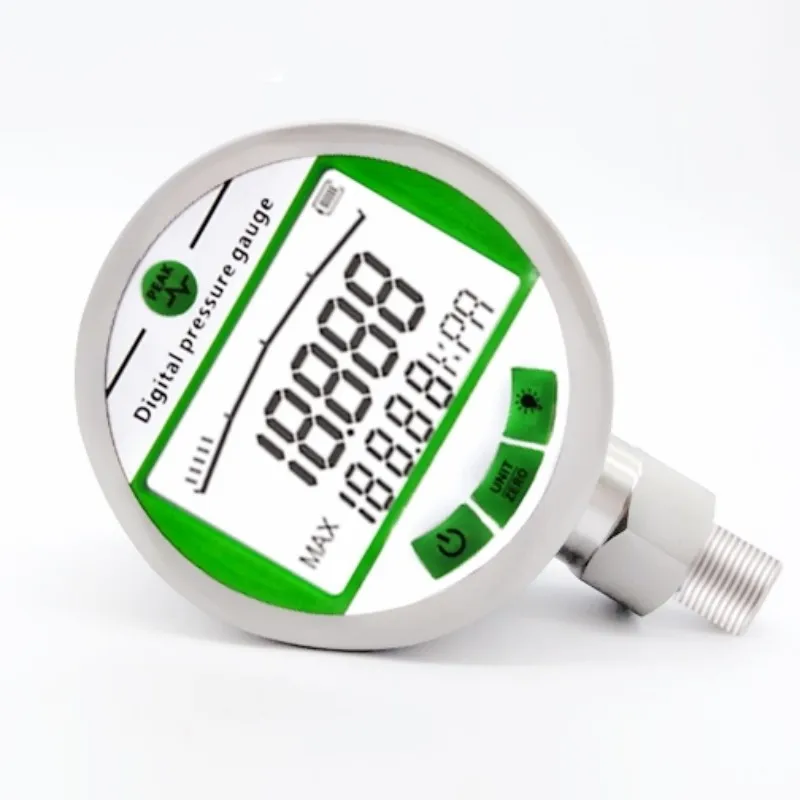

Details Images









Specification


Item

60mm 80mm 100mm digital pressure gauge RS485 crystal gas pressure gauge manometer

Medium

Liquid or gas compatible with stainless steel

Range

-0.1~0~100MPa

Pressure type

Gauge pressure/Absolute pressure

Output

Upper and lower limit control (switch value)

Accuracy

0.5%FS  0.25%FS  0.1%FS 0.05%FS

Unit

MPa, Kg/cm2, Psi, KPa, Bar etc

Sample frequency

10 times/200 times every second

Power Supply

Battery, 12/24VDC, 220VAC/380VAC

Medium temperature

0-80 degree

Ambient temperature

-10~60 Degree

OverLoad

150%FS

Thread optional

M20*1.5, 1/2NPT, 1/4NPT, G1/2, G1/4

Digits

5 Digits display

Weight

250g

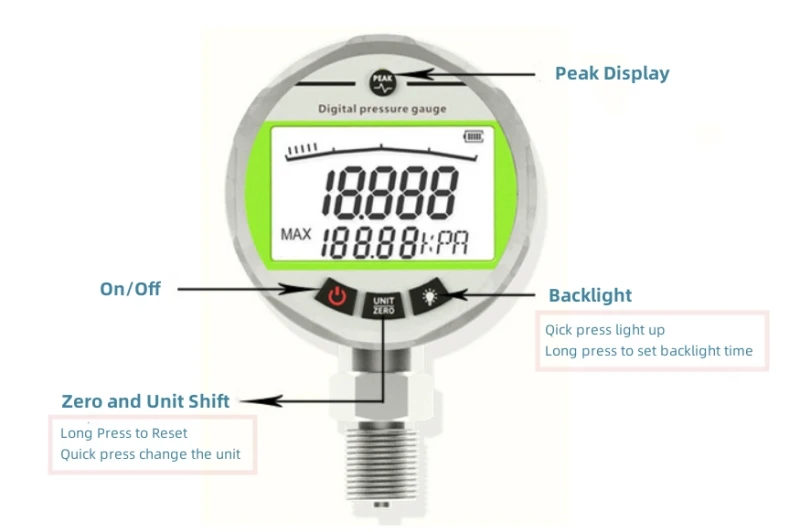

Features

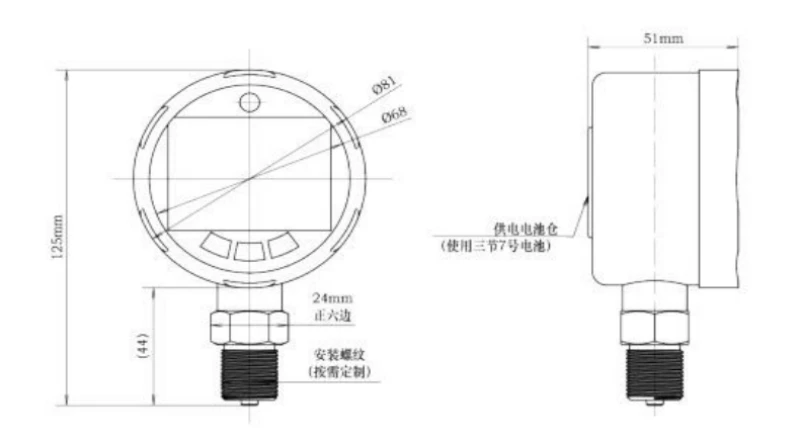

Appearance Dimension
